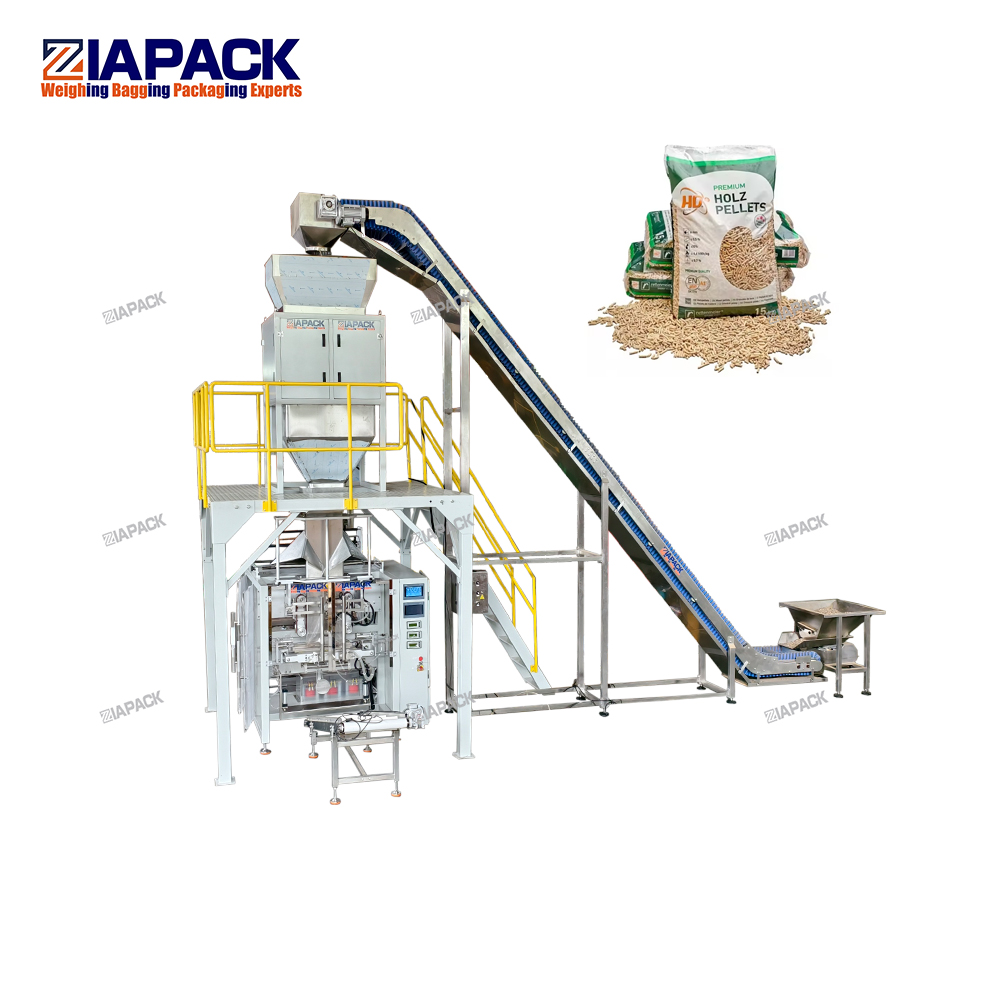

This packaging line is specifically designed for wood pellets, handling bag weights from 5 kg to 20 kg. The system integrates three core units: a large-inclination belt elevator, adouble head pneumatic scale, and a ZL1200 vertical film-forming packing machine.
Automatic15-20 kg wooden pellets bag forming filling packaging machine
Introduzione :
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
Parametri tecnici:
Weighing Range: 5-20kg
Packaging Speed:5-6 bags/min
Bag size: (200-680)*(150-535)mm(L*W)
Max film width:1100mm
Compressed air requirement: 0.75Mpa 0.8m³/min
Reel outer diameter: 450mm
Diametro interno del nucleo: 75 mm
Machine weight: 1100kg
Power source: 6.5kW 380V±10% 50Hz
- ZLC2-15k double bucket weighing machine Introduzione :This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet FoodCaratteristiche:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
