Introduzione :

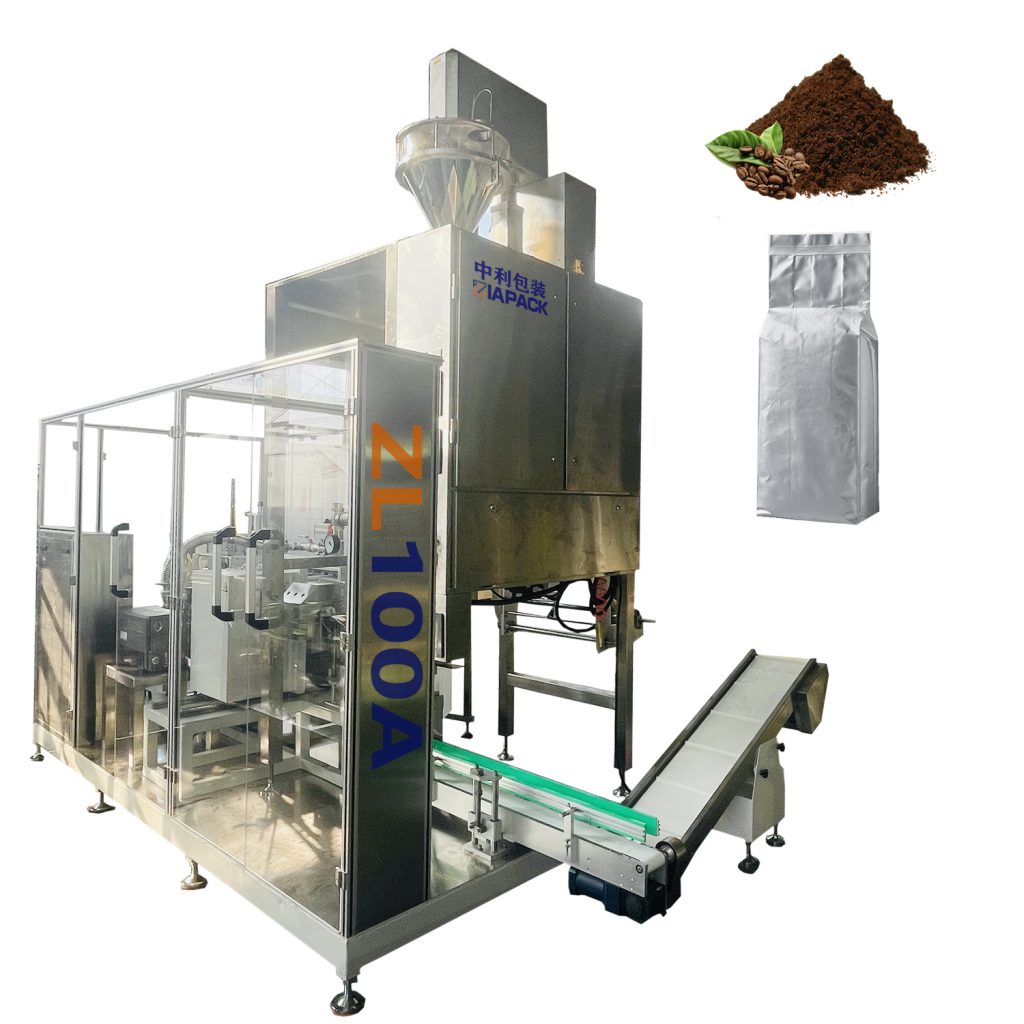

This vacuum packaging machine can realize fully automatic bag making, bag removal, feeding, weighing, material vibration, shaping, vacuuming, sealing, and finished product delivery in one, and pack loose materials into fixed-weight molding with high added value. The hexahedral package. This unit is widely used in the vacuum packaging of grain products such as rice miscellaneous grains and powder materials. The bags are beautiful in shape and good in sealing effect, which is convenient for boxing, boxing or direct retailing.
Parametro tecnico :
| Packing speed ： | 5-8bag/min |
| Filling range ： | 100-1000g |
| Bag type ： | Brick vacuum bag |
| Accuracy ： | ±0.2% |
| Air supply ： | 0.6Mpa 1.2m3/ min |
| Max film outer diameter ： | Φ450mm |
| Inner film roller diameter ： | Φ75mm |
| Total power ： | 10Kw |
| Voltage： | 380V 50HZ |
| Weight ： | 2000kg |
Introduction to Workflow
Bag forming→bag picking→cutting→vibration→shaping and pre-sealing→vacuumizing→bag dropping and pushing→finished product delivery
