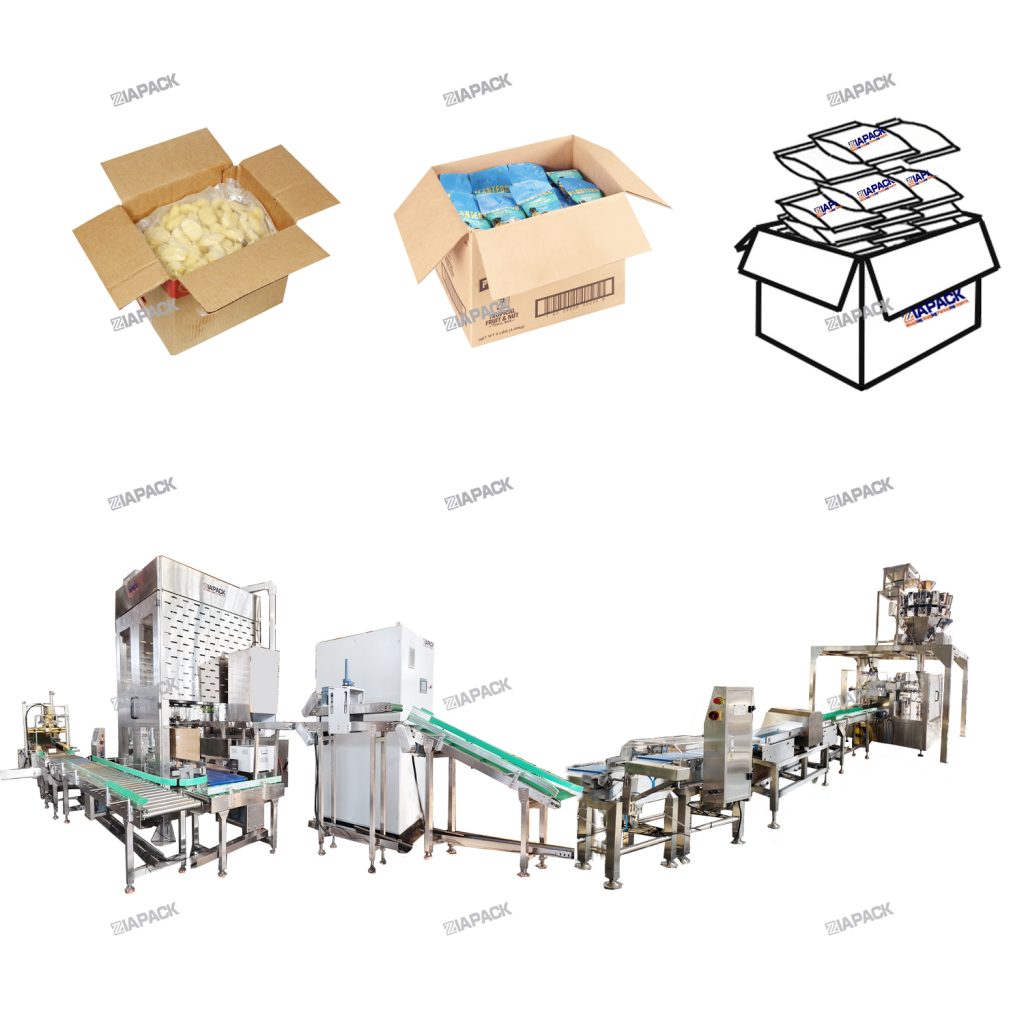

Automatic 1-3kg pet food weighing packaging carton filling and palletizing line

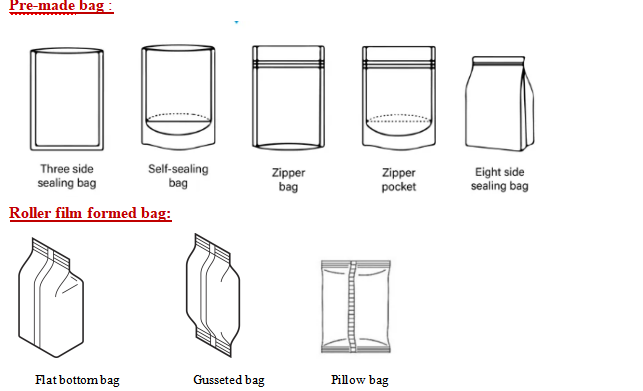

Introduzione :This unit is mainly used for weighing and packaging of 1-3 kg pet food in different bag types, as well as the packing of packaging bags and palletizing of full boxes at the back end. It adopts two packaging forms: pre-made bags and roll film bags. You can freely choose different bag types such as doy bags, zipper bags, box bags, pillow bags, gusseted bags, flat bottom bags, etc. According to the production needs of customers, different bag making and packaging forms are selected and matched with the back-end automatic counting, packing and stacking. The main machine of the packaging and weighing machine and all parts in contact with the material are made of 304 stainless steel. It adopts Japanese Orion vacuum pump, Festo pneumatic components, Siemens touch screen, PLC, and servo motors are all Panasonic brands. The whole machine has stable performance and high degree of automation. It is the best choice for major companies to realize automated packaging production.
Stazione di lavoro:
Bulk product feeding --Weighing --Filling --Preliminary bag forming--Sealing --Conveying --Weight checker --Metal detector --Bag pressing --Carton filling --Full carton box weight checking --Full carton box vibrating --Carton box sealing --Label printing and labeling on carton box --Full carton box conveying --Full carton box palletizing --Full pallets warpping .
