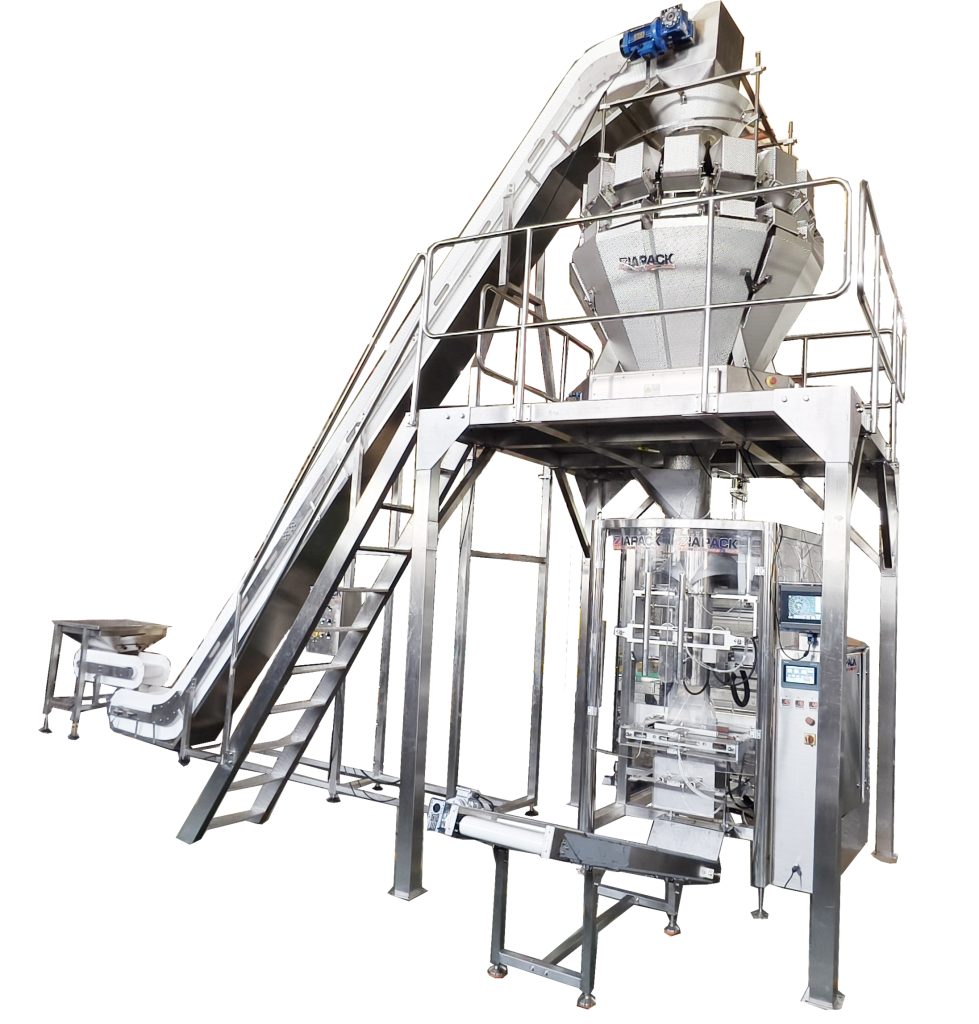

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Applicazione:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Caratteristiche:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Introduzione :
Questa macchina può realizzare automaticamente funzioni di confezionamento, riempimento, sigillatura, stampa, taglio, ecc. Questa macchina può raggiungere automaticamente il riempimento e la sigillatura della formatura del sacchetto.
Questa confezionatrice adotta un servomotore di importazione per l'alimentazione del film e l'interfaccia uomo-macchina utilizza un touch screen avanzato. Operazione più semplice e più conveniente. Tutti i componenti adottano il marchio famoso internazionale, PLC è SIEMENS, servomotore è PANASONIC, touch screen è SIEMENS, cilindro e valvola dell'aria è SMC. le parti a contatto con il materiale, l'armadio di controllo, il telaio principale sono realizzate in acciaio inossidabile 304
Parametri tecnici:
| Modello | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Lunghezza del sacchetto | 150-480mm by secondary film pulling the bag length can be longer |
| Larghezza della borsa | 120-375mm(Side width +front width ) |
| Larghezza del film | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Energia | 6KW 380V±10% 50Hz |
| Dimensione della macchina | 1650*1500*1750mm |
| Peso della macchina | 650kg |
